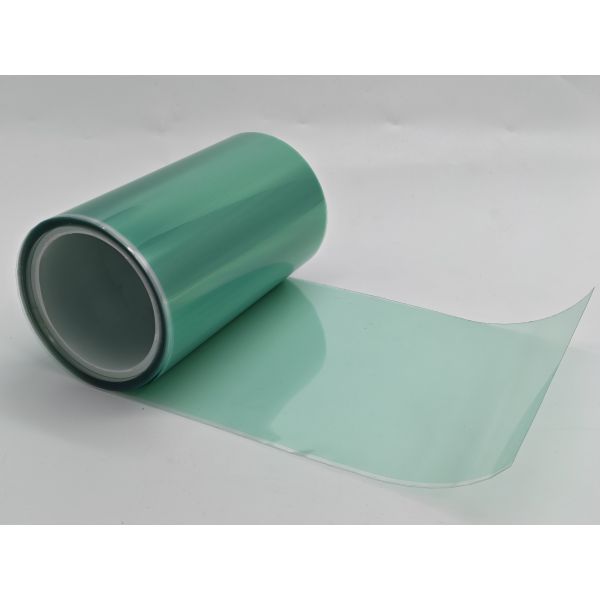

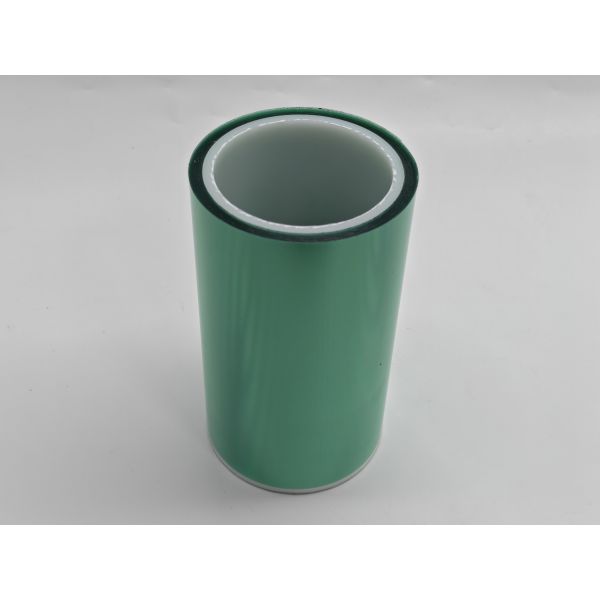

75μm Heat Resistant Green Lamination Tape
Product Description
The TX5025R+4 Series is a high-performance silicone adhesive PET tape designed specifically for temporary surface protection during critical manufacturing processes. Unlike conventional tape, TX5025R+4 is an engineered process protection tape built to safeguard sensitive components like LCD panels, glass touchscreens, and optical films.
It features PET substrate coated with a specialized silicone adhesive and lined with a fluoroplastic release film. This construction provides excellent initial tack, self-wetting properties, and reliable protection under temperatures up to 180°C.
The thickness of tape is 75μm. It is the ideal solution for protecting delicate surfaces during production, handling, and assembly, ensuring clean removal without residue every time.
Product Construction
| Layer |
Material |
Key Feature |
| 1 |
PET Substrate |
Anti-static treatment, high mechanical strength |
| 2 |
Silicone Adhesive |
Clean peeling, repositionable, no residue |
| 3 |
Release Liner |
PET Fluoroplastic Film for easy die-cutting |
Technical Specifications
| Parameter |
Value |
Test Method |
| Total Thickness |
75 ± 5 μm |
GB/T7125-2014 |
| Adhesive Thickness |
25 ± 5 μm |
GB/T7125-2014 |
| Adhesion Strength |
300g±150g/25mm(180°) |
GB-T2792-2014 |
| Temperature Resistance |
180°C / 30 min |
Oven Test |
| Test Conditions |
23±1°C, 50±5% RH, 300 mm/min |
— |
Application
- LCD / OLED Panel Protection Temporary surface protection during panel handling, transport, and module assembly
- Touchscreen Glass Processing Protecting glass covers for smartphones, tablets, and automotive displays during etching, cleaning, or coating
- Optical Film Lamination Protecting the outer surface during multi-layer lamination processes
- Silicone Rubber Assembly Temporary bonding or protection of silicone gaskets, seals, or keypads
- PCB / FPC Protection Surface protection during selective soldering or conformal coating masking
- Backlight Unit Assembly Preventing scratches and contamination on optical films and light guide plates
Company Introduction
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.
To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.
The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
FAQ
1. What’s the heat resistance?
Up to 180℃ continuous temperature
2. Does it leave glue residue?
No residue, clean removal
3. Can specs be customized?
Size, adhesion and colors all customizable
4. Main application scenarios?
Glass protection, high-temp masking, silicone bonding
5. Sample & delivery time?
Free samples, lead time 7-10 working days
