White Double-Sided Tape
Description

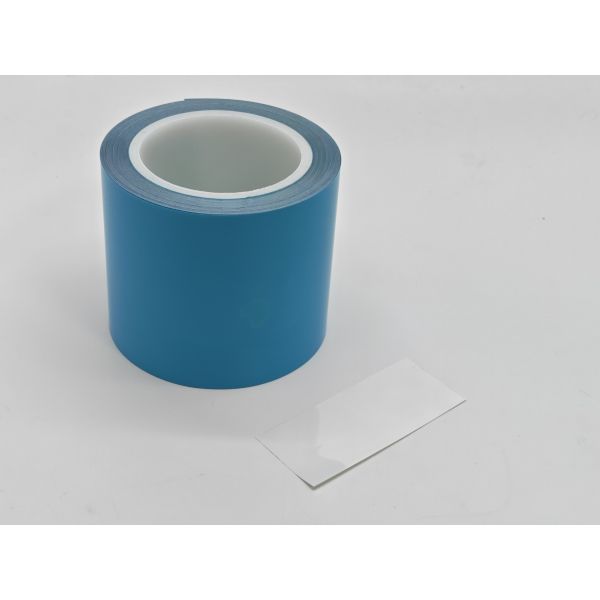

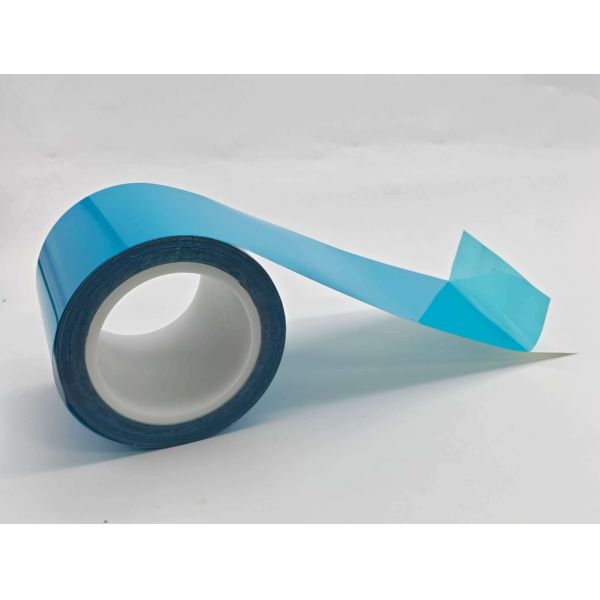

DTT10WBL2 Series is a 10μm withe PET double-sided tape with acrylic adhesive. It features a printed white polyester film as the core substrate, with high-performance acrylic adhesive coated on both sides. The structure ensures uniform bonding performance and stable quality for general assembly applications.
It delivers reliable adhesion to various metal and plastic surfaces, together with good softness and conformability. The white color provides clear visual error-proofing during production, improving assembly accuracy and efficiency.
Ideal for internal bonding and fixing of components in electronic products. It suits general assembly processes, offering excellent processability and stable performance under normal working conditions.
Applications
- General bonding of electronics, plastic, and metal parts
- Home appliance component assembly and fixation
- Automotive interior trim and part bonding
- Packaging box reinforcement and sealing
- PCB board temporary fixing during processing
- Display panel frame bonding and positioning
Structure
| NO |
Layer&Material
|
Remarks
|
| 1 |
Structure
|
Release Film
|
Blue PET Release Film(25μm)
|
| 2 |
Adhesive of Side A
|
Acrylic Adhesive
|
| 3 |
Ink Layer
|
White Ink Layer
|
| 4 |
PET
|
PET Release Film
|
| 5 |
Adhesive of Side B
|
Acrylic Adhesive
|
| 6 |
Release Film
|
Blue PET Release Film(36μm)
|
Physical Parameters
| Item |
Specification |
Standard |
| Total Thickness |
10-13±1μm |
GB/T7125-2014 |
| Release Material Thickness |
4.5±1μm |
GB/T7125-2014
|
| Adhesion Strength |
Side A≥800g/25.4mm
Side B≥1000g/25.4mm
|
GB/T2792-2014 |
|
Ink Coating Thickness
|
1±0.1μm
|
GB/T7125-2014
|
|
Substrate Thickness
|
2±0.2μm
|
GB/T7125-2014
|
|
Adhesive Thickness of Side B
|
4.5±1μm
|
GB/T7125-2014
|
| Temperature Range |
-20℃~100℃ |
Oven Test |
| Test Conditions |
23±1℃, 50±5%RH, Steel Plate, 300mm/min |
- |
Company Introduction
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (Sanfeng Win), founded in 2010, is a private enterprise integrating R&D, production, and sales of adhesive products. With industry-leading coating technology and a professional R&D team, we specialize in high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, and backsheets. Our products are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, and photovoltaic industries. Equipped with precision coating equipment, a high-purification clean workshop, and a multi-functional composite precision coating production line, we provide customers with R&D, design solutions, and market application feedback, enabling independent mass production services to ensure product quality.
FAQ
-
What is the substrate material?
It uses PET (polyester film) as the base material with acrylic adhesive on both sides.
-
What is the total thickness?
The total thickness is 100±5μm, providing stable and sturdy bonding.
-
Does it have good adhesion?
Yes, the 180° peel strength is at least 1000g/25mm, ensuring strong bonding.
-
What temperature can it withstand?
It works stably within the range of -5℃ to 80℃.
-
Is it suitable for plastic bonding?
Yes, it offers excellent adhesion to various plastics, metals, and electronic components.
-
Can it be used for temporary fixing?
Yes, it works well for temporary fixing during processing and assembly.
