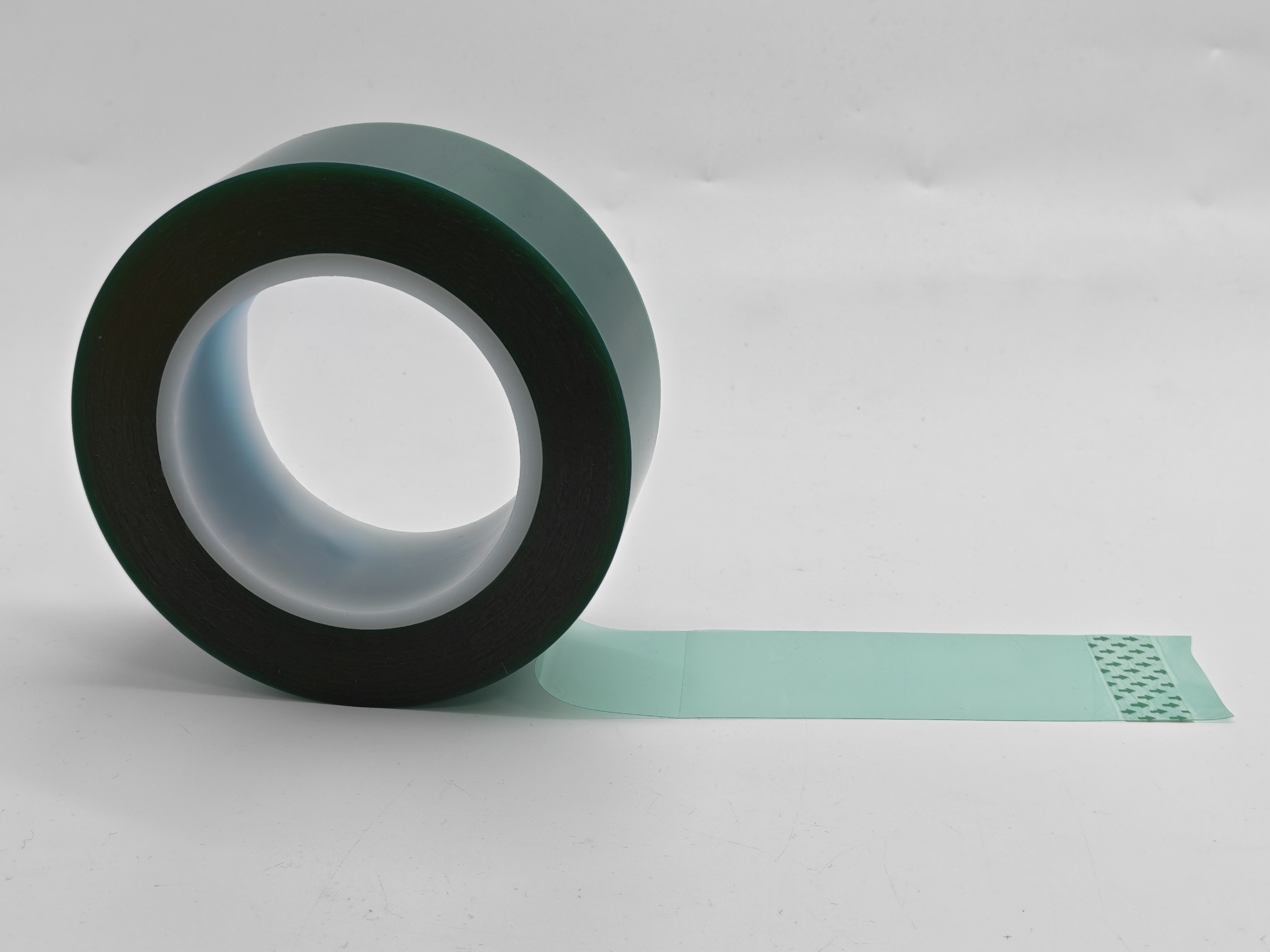

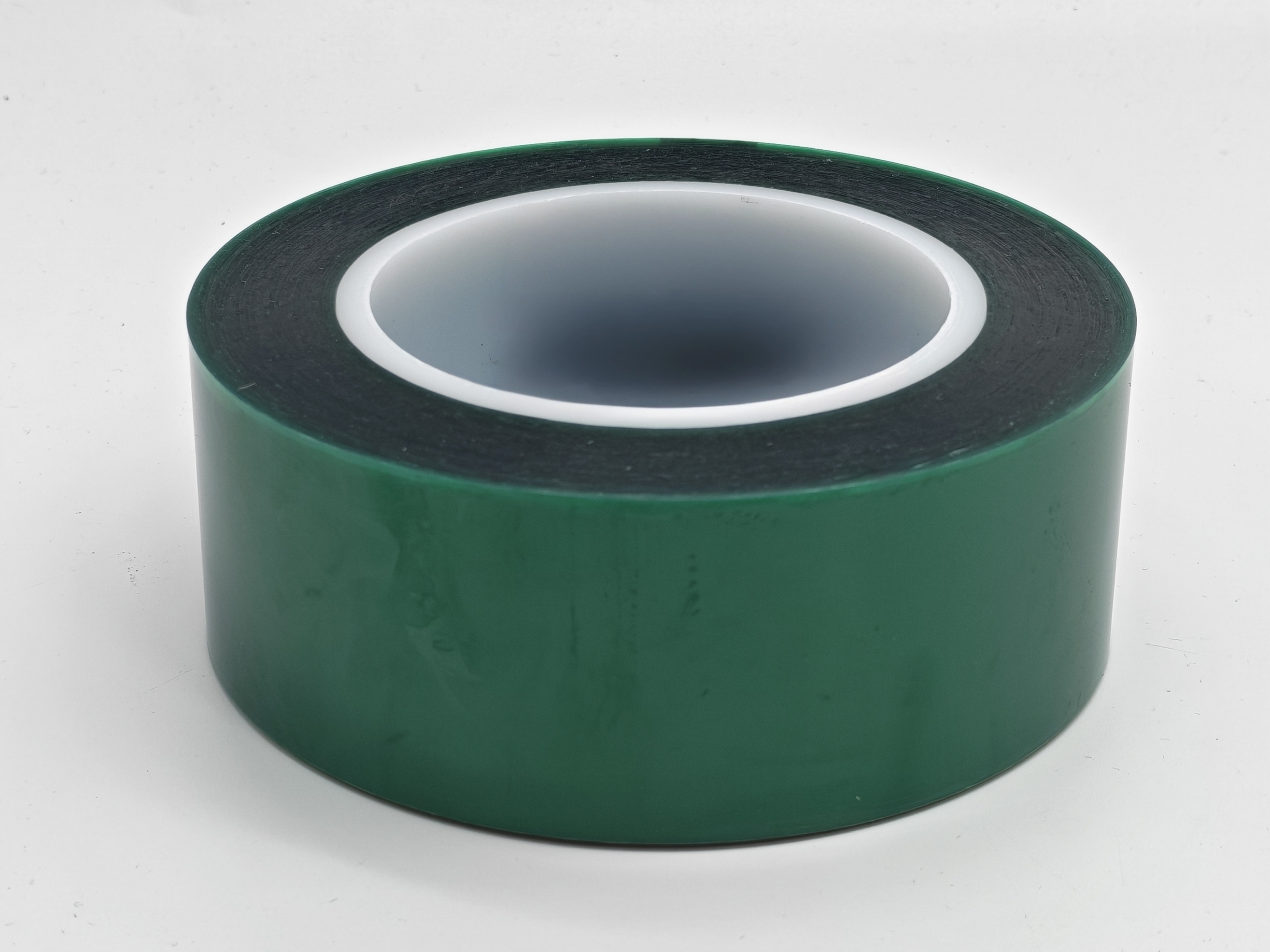

75μm Heat Resistant Green PET Tape
Description
This Heat Resistant PET Tape is made of high-quality PET film as the substrate. It features excellent temperature resistance, stable adhesion, and reliable physical performance, widely used in electronic manufacturing, surface treatment, and high-temperature processing industries.
The thickness of the tape is 75μm, supporting flexible customization. The maximum width reaches 1300mm, and conventional widths include 500mm, 1040mm, 1090mm, and 1280mm to meet diverse application and processing requirements.
Adhesion strength is 600-900g. The product is available in multiple colors: green, yellow, red, black, grass green, and transparent, facilitating identification and application in different working scenarios.
It exhibits outstanding initial tack and strong self-adsorption, enabling easy and smooth lamination. The tape can be peeled and reapplied repeatedly without leaving any residual adhesive on the surface, effectively protecting the appearance and integrity of the substrate.
With excellent temperature resistance up to 180℃, the tape maintains stable performance under high-temperature conditions. It also provides good insulation properties, ensuring safety and reliability in electronic applications.
Applications
- Surface protection for LCD panels, PDA panels, and glass substrates
- Painting and coating masking for housings and shells
- Application and bonding on silicone rubber materials
- High-temperature masking and surface protection in manufacturing processes
- Providing reliable solutions to improve production efficiency and reduce defects
Physical Parameters
| Item |
Specifications/Performance |
| Substrate |
High-quality PET film |
| Adhesion |
Silicone |
| Thickness |
75±5μm |
| Adhesive Thickness |
25±5um |
| Adhesion Strength |
600-900g/25mm(180°)
|
| Colors |
Green |
| Temperature Resistance |
Excellent, continuous working temperature up to 180℃ for 30 minutes (maintains stable performance under high-temperature conditions) |
| Key Features |
Excellent initial tack, strong self-adsorption, re-peelable, residue-free after peeling, good insulation performance, stable physical performance, uniform coating |
| Main Applications |
Surface protection of LCD panels, PDA panels and glass substrates; Painting and coating masking of housing and shells; Applicable to silicone rubber materials; High-temperature masking and insulation in electronic manufacturing, surface treatment and high-temperature processing industries |
| Quality Control |
Strict quality control, ensuring stable performance and consistent quality |
Company Introduction
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.
To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.
The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
FAQ
1. What is the temperature resistance?
Our high-temperature PET tape can withstand continuous temperature up to 180℃.
2. Will it leave residue after peeling?
No residue. It can be peeled cleanly without damaging the surface.
3. What are your available sizes?
All the things can be customized.
Thickness: 0.025T–0.25T
Max width: 1300mm
Standard widths: 500mm, 1040mm, 1090mm, 1280mm
4. What colors do you have?
Green, yellow, red, black, grass green, transparent.
5. What about adhesion?
Adhesion: 50g–2000g, can be customized.
6. What liner do you use?
Fluorine release film for stable and easy peeling.
7. What are the main applications?
LCD/glass protection, housing painting masking, high-temperature masking, silicone rubber bonding.
8. Can you provide double-sided tape?
Yes, we supply double-sided silicone PET tape with fluorine release film.
9. Can I get free samples?
Free samples are available, buyer only pays shipping cost.
10. What certifications do you have?
ISO 14001:2015.
11. What is the production lead time?
Normally 7–10 working days.
