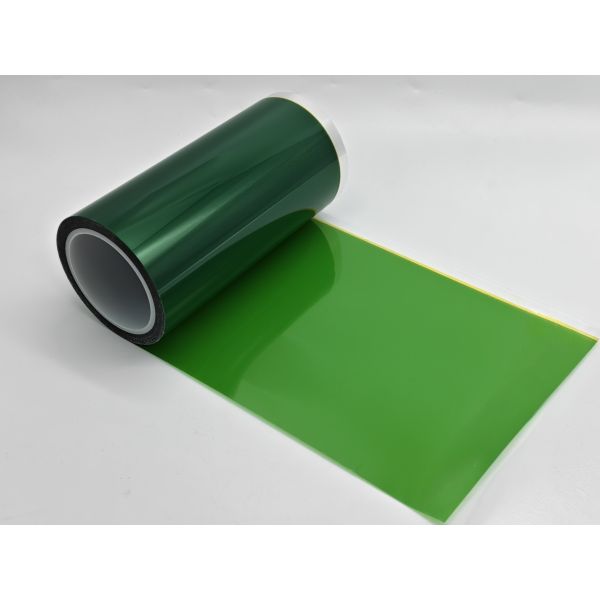

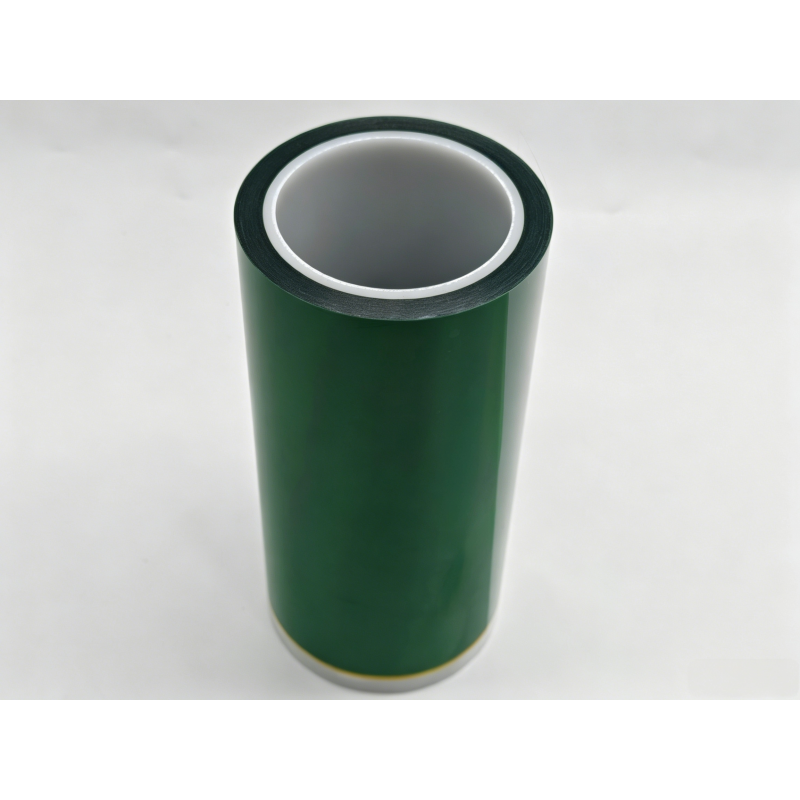

Silicone Double-sided Tape
Description
PX95RB Series is a 0.09mm high-temperature resistant double-sided tape with silicone adhesive. It adopts modified composite PET as the core substrate, with silicone adhesive coated on both sides and fluorine films attached on outer layers. The multi-layer structure delivers outstanding high temperature resistance, no residue after peeling and excellent insulation for protection, masking and bonding applications.
It features good initial tack and self-adhesion, and can be repeatedly pasted and removed without leaving adhesive residue. It performs stably at up to 180℃ and has great adaptability to silicone rubber materials, bringing high convenience for production operations.
Ideal for protection of LCD and PDA glass panels, spray masking of device housings and bonding of silicone rubber parts. It suits high-temperature working processes, offering excellent reusability and stable performance under normal working conditions.
Applications
- Protection for LCD and PDA glass panels
- Spray masking for device housings
- Bonding of silicone rubber materials
Structure
| NO |
Layer&Material
|
Remarks
|
| 1 |
Structure
|
Polyester Film
|
1-3g Fluoroplastic Film
|
| 2 |
Adhesive
|
Silicone
|
| 3 |
Substrate
|
PET |
| 4 |
Adhesive
|
Silicone
|
| 6 |
Polyester Film
|
Fluoroplastic Film
|
Physical Parameters
| Item |
Specification |
Standard |
| Total Thickness |
0.09±0.01 mm |
GB/T7125-2014 |
| Adhesive Thickness |
Side A:30±3μm Side B:40±3μm
|
GB/T7125-2014 |
| Adhesion Strength |
Side A≥1000g/25.4mm
Side B≥1200g/25.4mm
|
GB/T2792-2014 |
| Temperature Range |
180℃/30 minutes |
Oven Test |
| Test Conditions |
23±1℃, 50±5%RH, Steel Plate, 300mm/min |
- |
Company Introduction
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (Sanfeng Win), founded in 2010, is a private enterprise integrating R&D, production, and sales of adhesive products. With industry-leading coating technology and a professional R&D team, we specialize in high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, and backsheets. Our products are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, and photovoltaic industries. Equipped with precision coating equipment, a high-purification clean workshop, and a multi-functional composite precision coating production line, we provide customers with R&D, design solutions, and market application feedback, enabling independent mass production services to ensure product quality.
FAQ
-
What is the substrate material?
It uses PET (polyester film) as the base material with acrylic adhesive on both sides.
-
What is the total thickness?
The total thickness is 100±5μm, providing stable and sturdy bonding.
-
Does it have good adhesion?
Yes, the 180° peel strength is at least 1000g/25mm, ensuring strong bonding.
-
What temperature can it withstand?
It works stably within the range of -5℃ to 80℃.
-
Is it suitable for plastic bonding?
Yes, it offers excellent adhesion to various plastics, metals, and electronic components.
-
Can it be used for temporary fixing?
Yes, it works well for temporary fixing during processing and assembly.
